Product Description

Frp truck body panels are a new kind of high-quality environmental-friendly product,which is made of heat-cured gel coat, synthetic resin and fiberglass. And it's widely used in high-grade automobiles, refrigerator truck compartments and purification, medical treatment, food hygiene and other projects.The frp truck body panel can be combined with the froth, gypsum, polywood, aluminium, PP, XPS, honeycomb, it is a more strengthen, better rigidity panel, sandwich panels will be easier to install, the installation efficiency will be improved greatly, furthermore, the requirement of wall coarseness will be reduced also.

Features

1) Machine continuously made flat panels, no limit on length;

2) Anti-impact: much better stiffness and strength than plastic, due to fiberglass reinforced;

3) Fire resistant: made by thermosetting resin;

4) Mildew resistant: Effectively inhibit the growth of mildew;

5) Easy install: No other tools are needed except for rivet or glue only;

6) Anti-corrosive: stay good condition immerged into 10% Hydrochloric acid or 3% NAOH solvent for long time;

7) Easy cleaning: Frp truck body panels can be easy cleaned by steam or high-pressured squirt gun;

8) Extreme temperature resistant: Withstand temperature at -40 -110 degree C for long time;

9) Rolled up by machine with 50-100m length as a coil, to save shipping cost.

Product Specification

Items	FRP Fiberglass Truck Body Siding Panel Trailer Side Panel
Material	Gel coating: 300um ISO-phthalic polyester gel coat Matrix resin: unsaturated polyester resin Reinforce fiber: E-glass
FRP panel size	Thickness: 1.0mm-3.0mm Width: ≤2750mm ; Length: customer length
Tensile strength	≥75MPa
Tensile modulus	≥4800MPa
Bending strength	≥120MPa
Bending modulus	≥5GPa
Impact strength	≥35KJ/m2
Compression strength	≥35MPa
Distortion temperature(1.8MPa)	>230℃
Thermal expansivity	2.4×10-5℃-1
Gravity	1.6-1.7g/cm3
Water Absorption	0.16%/24hrs, 25C
Stickiness	≥42dyne
Approval test standards	ASTM-E84, RoHS 2002/95/EC
Chemical resistance	Can be used in foggy environment of 10% HCl and 3% NaOH solvent for long. For usage in other solvent, please contact our engineer.

Application

FRP truck body panels

Reefer containers carry heavy mechanical loads when loading and transporting goods. In addition, it is necessary to maintain a very low temperature for a long period of time while saving as much energy as possible. Vehicle-mounted composite materials can provide safe and energy efficient food transportation solutions for refrigerated containers.

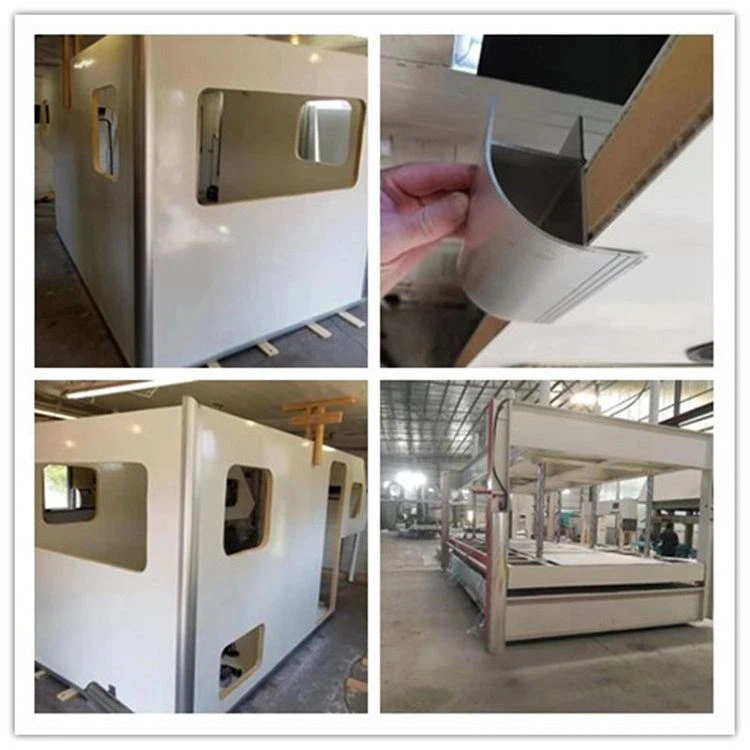

Car board

Packing & Delivery

FRP fiberglass Truck Body Siding Panel Trailer Side Panel
Packing	1. Protected by stretch film.
	2. Fasten by packing banding and packed on pallet.
	3. Grating corners are protected by FRP angle or thick papercard.
Delivery	1. Stock grating: 3-5 working days.
	2. Manufacturing: 1-2 weeks, or depends on the order quantity.
