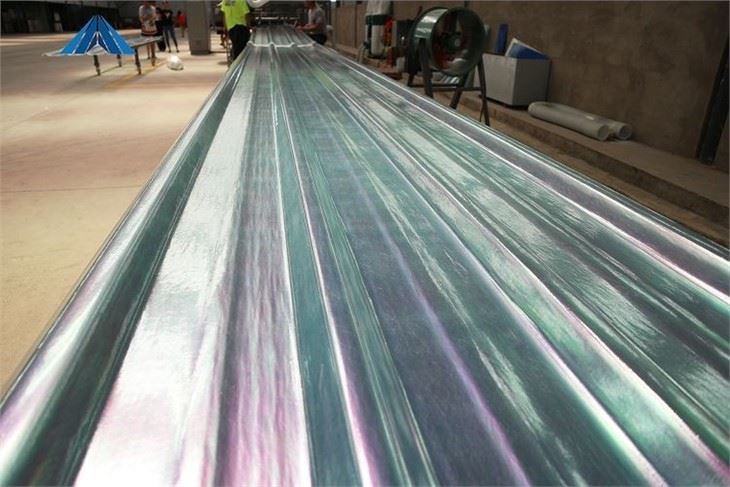

FRP Transparent Sheet

Product Description

FRP transparent sheet (commonly known as fiberglass/FRP lighting sheet), uses high-quality polyester resin, high-grade alkali-free glass mat or fiberglass roving as raw materials, by automatic continuous unit traction, through computer controlled oven heating in constant speed, it is molded by high temperature gel curing. The product has smooth surface, and dimensional stability. Color and length customized.

Material - Fibreglass Reinforces Polymer

Color - As per RAL

Width - max 1450 mm

Length - No restriction

Thickness - 0.8 to 6 mm

Unit weight - Depend on the thickness

Tolerance - +/-10%

Resin - RL / UV / G.P / Isophthalic / Vinylester / Epoxy / Phenolic

Fiberglass - Greater than 30%

Gelcoat - Topside with any resin (depend on application)

Warranty - 10 to 15 years

Product Informations

Features

1.The light transmission

FRP transparent sheet is between 60-85%. Light through FRP lighting sheet scatters and is mild. It will not form a light band so as to make the indoor brighter.

2.Weather resistance

The 23μm anti-aging film from Dupont covering on the surface of FRP sheet improves its property of weather resistance.

3.Impact resistance

The strengthening fiber-glass materials criss-cross the structure of the products,which helps to improve the impact resistance of FRP sheet. When impacted by spalls or hails, they are hardly broken.

4.Corrosion resistance

The products resist various acids, alkalis and peroxides, especially suitable for application in the coastal areas and corrosive places.

5.Service temperature

It is a kind of hot solid high polymer materials. It is designed for normal use in temperatures from - 40°C to120°C.

6.Heat stability

It is a kind strengthening plastic of hot solid fiber-glass . Its coefficient of heat expansion is 2.2 x 10-5mm/mm/°C,only 2 times of metal materials. For this reason, when it matches with a metal sheet, the displacement is relatively small, not easy to leak.
